Structural bill of quantities
Structural BQ · Four-building residential development
Preparation of the structural Bill of Quantities for a four-building, three-storey residential development in Accra, on a site of approximately 33,800 m².
The assignment
From drawings to reliable quantities.
The development comprises two pairs of buildings: two residential blocks with accessible roofs and two semi-detached blocks, together with a gym, swimming pool, generator room, gatehouse, and parking areas.
The assignment was completed for YEM Building Construction as part of construction work undertaken for a real-estate agency.
The detailed quantities cover earthworks and excavations together with structural works: foundations, 150 mm reinforced-concrete slabs, reinforced-concrete walls and parapets across all buildings and ancillary structures.
The estimate was limited exclusively to structural work, in accordance with the scope defined by the client.
Detailed scope
Included in the assignment
- Earthworks and excavations
- Foundations
- 150 mm reinforced-concrete slabs
- Reinforced-concrete walls and parapets
- Buildings and ancillary structures
Project documents

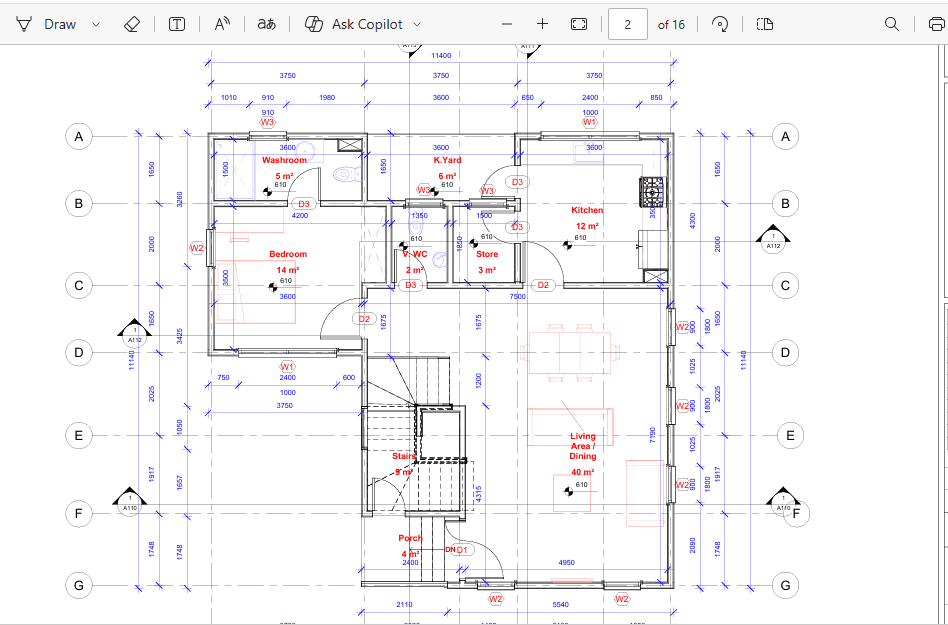

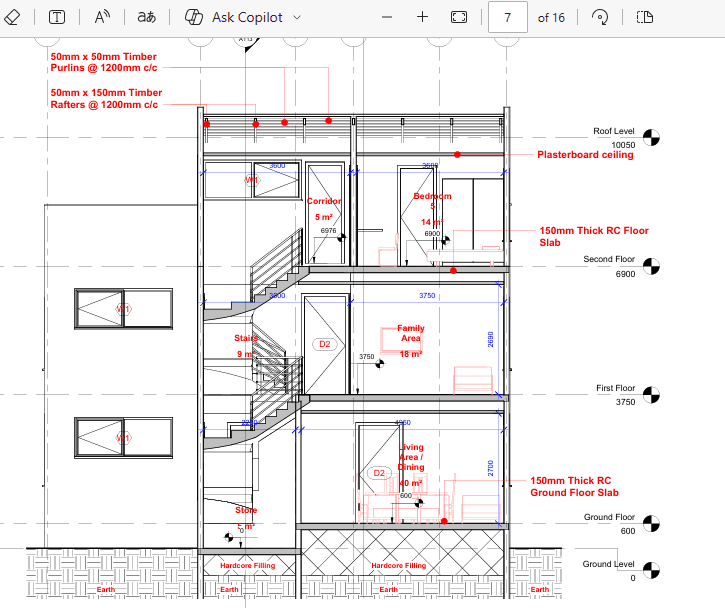

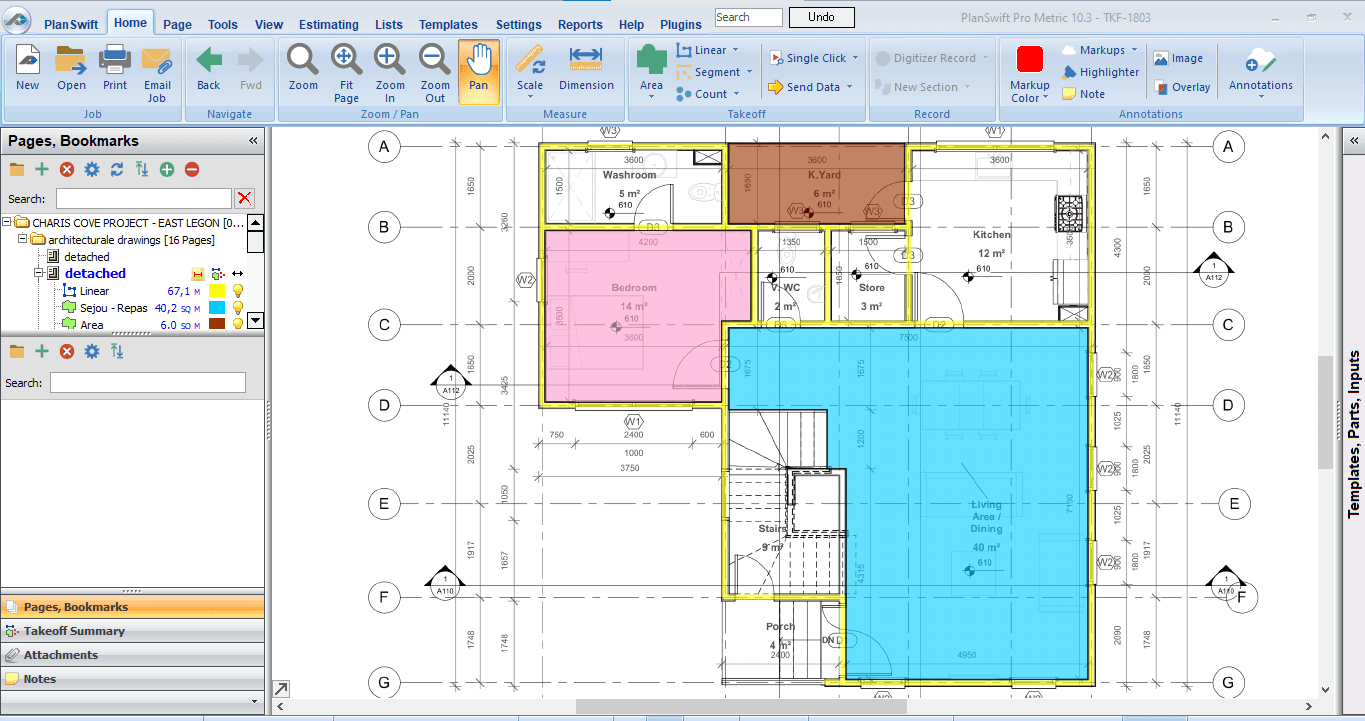

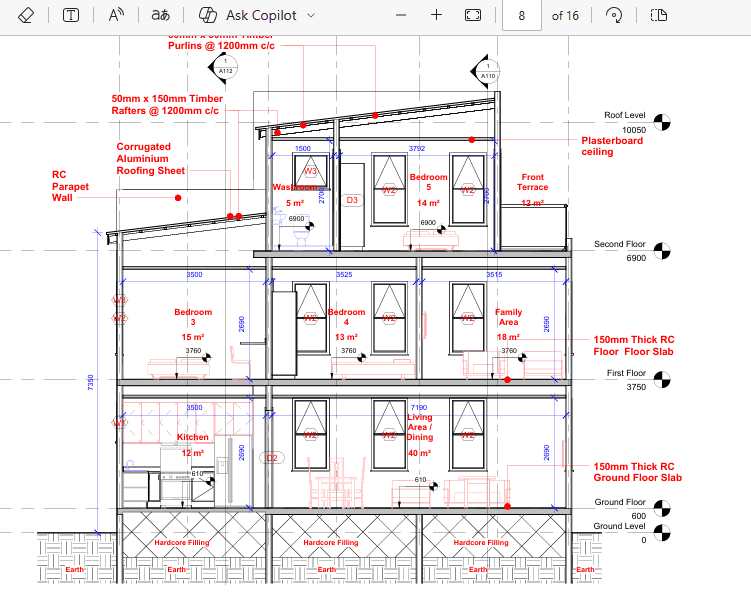

01 — 06Design, drawings, and quantity take-off.
